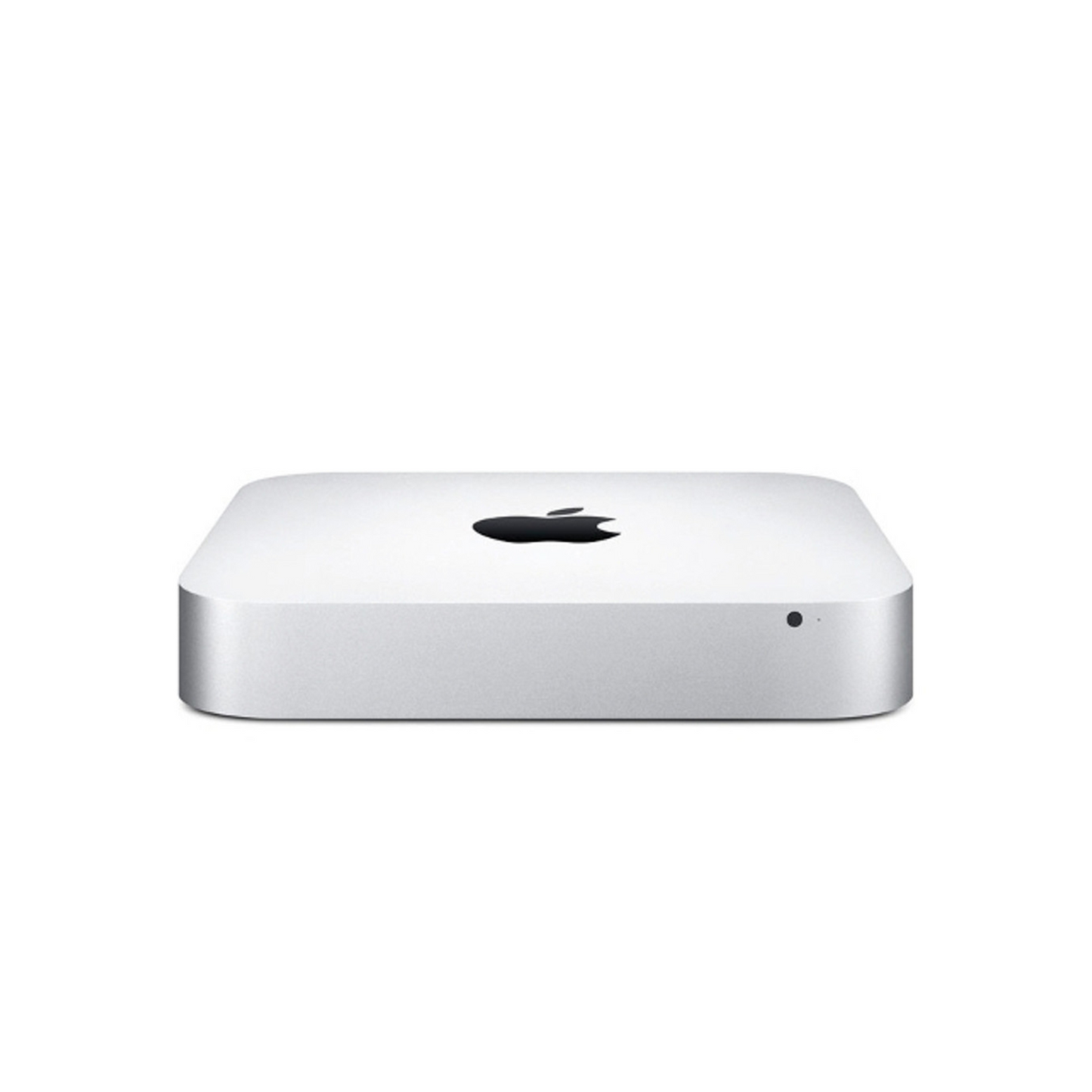

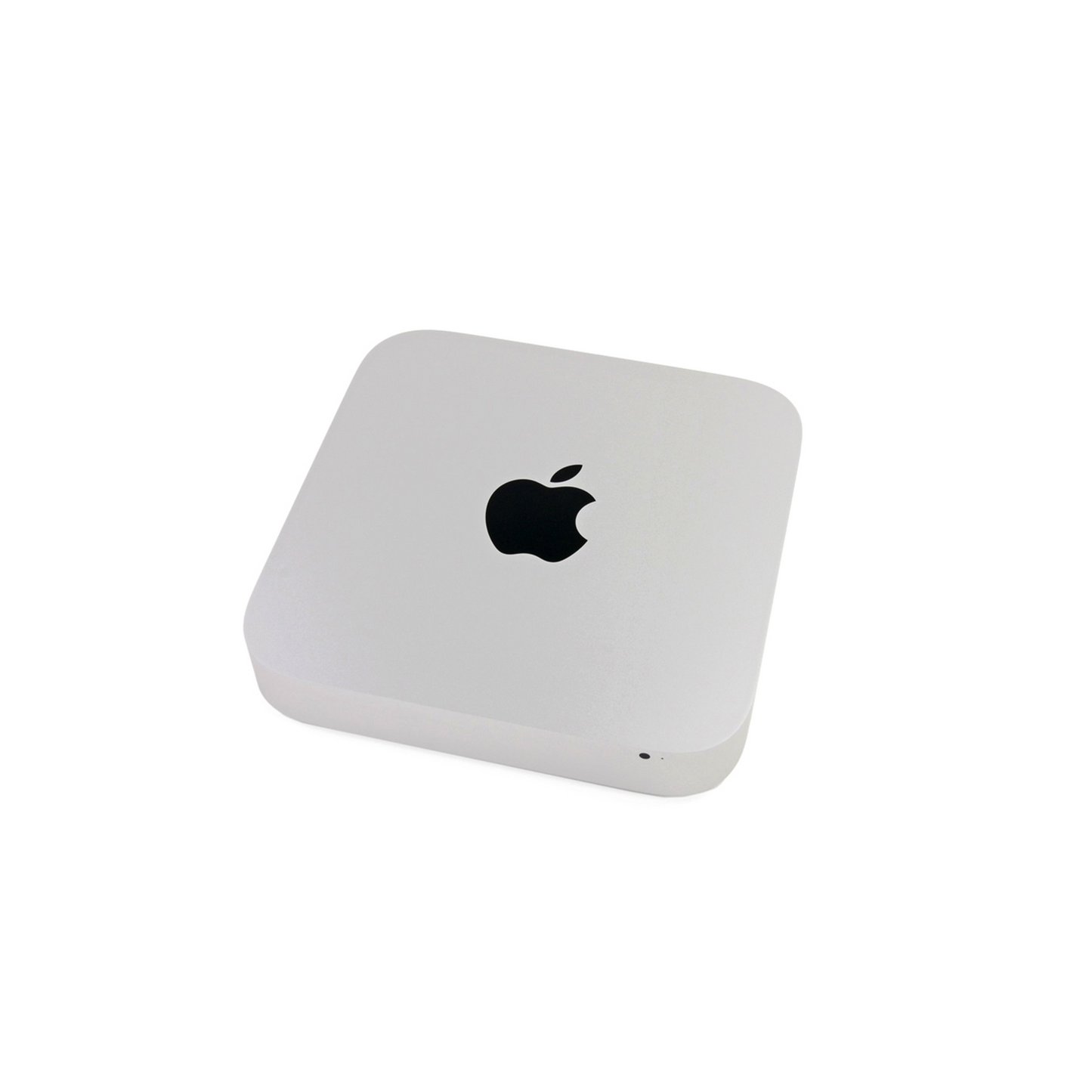

Apple Mac Mini (2012)

Size and Weight:

• Height: 1.4 inches (3.6 cm)
• Width: 7.7 inches (19.7 cm)
• Depth: 7.7 inches (19.7 cm)
• Weight: 2.7 pounds (1.22 kg)

Processor:

• 2.5GHz: Dual-core Intel Core i5 (Turbo Boost up to 3.1GHz) with 3MB L3 cache
• 2.3GHz: Quad-core Intel Core i7 (Turbo Boost up to 3.3GHz) with 6MB L3 cache
• Configurable to 2.6GHz Quad-core Intel Core i7 (Turbo Boost up to 3.6GHz)

Storage:

• 2.5GHz: 500GB (5400-rpm) hard drive
• 2.3GHz: 1TB (5400-rpm) hard drive
• Configurable to 256GB solid-state drive or 1TB Fusion Drive

Graphics:

• Intel HD Graphics 4000

Memory:

• 4GB (two 2GB) of 1600MHz DDR3 memory
• Configurable to 8GB or 16GB

Video Support:

• Supports up to two displays at 2560 x 1600 pixels, both at millions of colors
• Thunderbolt digital video output
• Native Mini DisplayPort output
• DVI output using Mini DisplayPort to DVI Adapter (sold separately)
• VGA output using Mini DisplayPort to VGA Adapter (sold separately)
• Dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter (sold separately)
• HDMI video output supporting 1080p resolution at up to 60Hz
• DVI output using HDMI to DVI Adapter (sold separately)

Audio:

• Audio line in minijack (digital/analog)
• Audio line out/headphone minijack (digital/analog)
• HDMI port supports multichannel audio output
• Support for Apple iPhone headset with microphone
• Built-in speaker

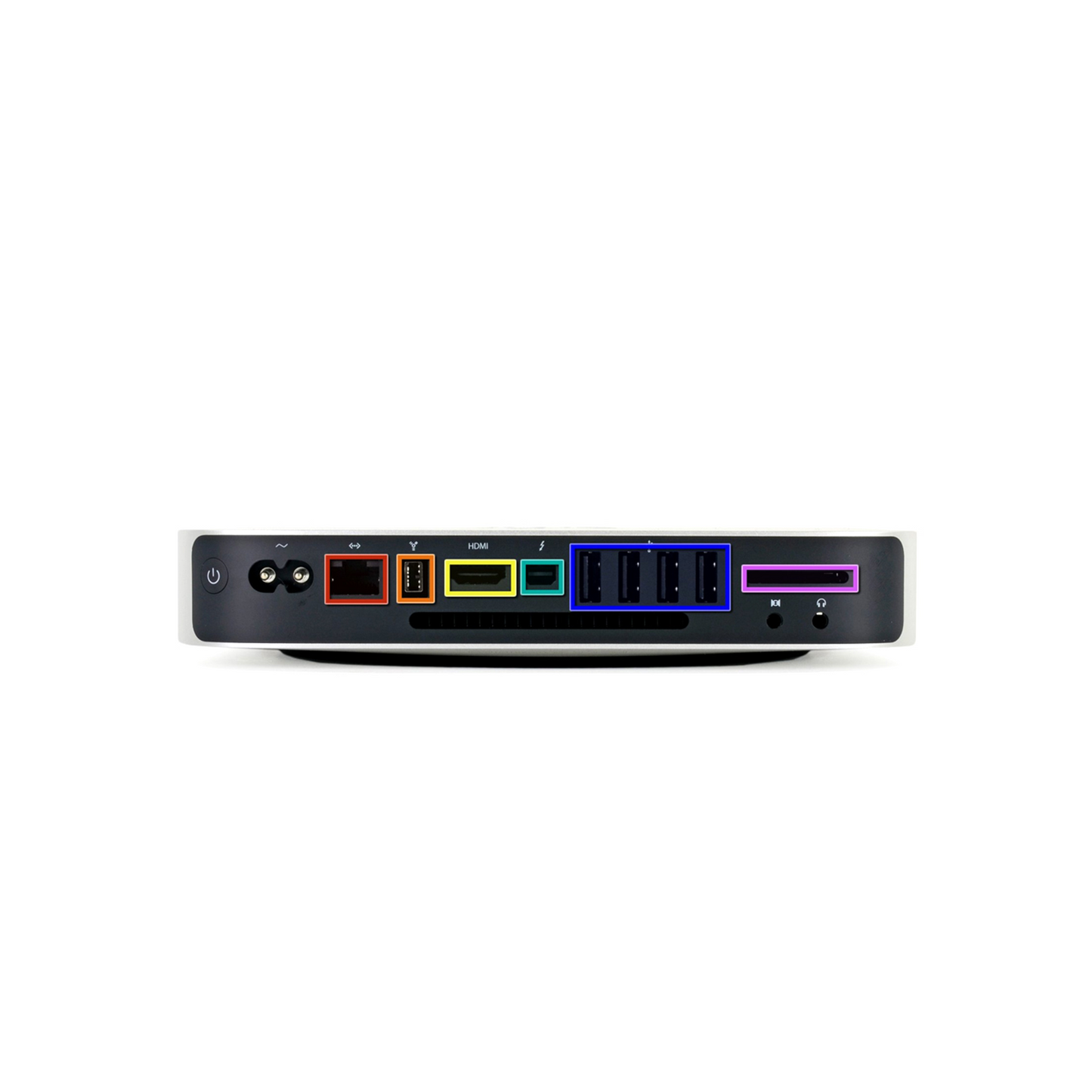

Connections and Expansion:

• Thunderbolt port (up to 10 Gbps)
• FireWire 800 port (up to 800 Mbps)
• Four USB 3 ports (up to 5 Gbps)
• HDMI port
• SDXC card slot
• Gigabit Ethernet port
• Audio in/out
• IR receiver

Communications:

• Wi-Fi: 802.11n Wi-Fi wireless networking; IEEE 802.11a/b/g compatible
• Bluetooth: Bluetooth 4.0 wireless technology
• Ethernet: 10/100/1000BASE-T Ethernet (RJ-45 connector)

Electrical and Operating Requirements:

• Line voltage: 100-240V AC
• Frequency: 50Hz to 60Hz, single phase
• Maximum continuous power: 85W
• Operating temperature: 50° to 95° F (10° to 35° C)
• Storage temperature: -40° to 116° F (-40° to 47° C)
• Relative humidity: 5% to 95% noncondensing
• Operating altitude: tested up to 10,000 feet

Typical Acoustical Performance:

• Dual-core model: 12 dBA at idle
• Quad-core model: 15 dBA at idle

Limited Warranty and Service:

• 90 days of free telephone support
• One-year limited warranty
• Option to purchase the AppleCare Protection Plan to extend service and support to three years

In the Box:

• Mac mini
• HDMI to DVI Adapter
• Power cord
